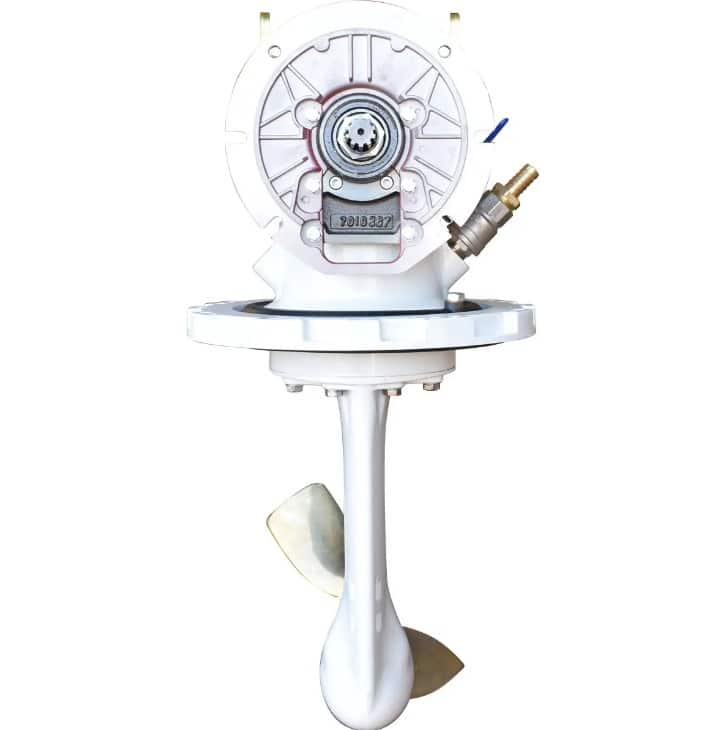

BETA 38 Sail Drive Marine Diesel Engine Specifications

BETA 38 Sail Drive Marine Diesel Engine Specifications 2

BETA 38 Sail Drive Marine Diesel Engine Specifications, serviced by trained technicians at Santa Barbara Marine Diesel Mechanic. servicing, Ventura, Oxnard, Channel Islands Harbor & Santa Barbara.



Specifications:

Power @ 3,600 rpm: 27.0 kW38 hp
Aspiration: Natural
Cylinders: 4
Displacement: 1498 cc91 in3
Engine Weight: 154 kg340 lbs
Engine & Saildrive Weight: 204 kg450 lbs
Saildrive: SeaProp 60SD (Standard)
Alternator: 70 Amp (Standard)
2 Bladed Folding Bronze Left Hand Propeller*:17″ x 10″
3 Bladed Fixed Aluminum Left Hand Propeller*:16″ x 10″

A general guidance for propeller size in inches, based upon 2 blade folding propeller LH or RH rotation and reduction ratio of 2:1. *For accurate individual advice please provide us with your vessel’s current full specifications.



STANDARD SPECIFICATIONS

  • EPA (U.S Environmental Protection Agency) Tier III – 40 CFR 1042 exhaust emission compliant.
  • Mechanically governed comes with:
    • Heat exchanger, header tank and water-cooled exhaust manifold.
    • Fresh and sea water pump, injection bend for a wet exhaust.
    • Mechanical fuel lift pump, fuel and oil filtration.
    • Flywheel housing and drive plate with heavy inertia ring for super smooth running at low rpm.
    • Special quiet air intake filter.
    • Shallow sump.
  • 70 Amp, 12 Volt battery charging alternator.
  • Complete with ‘ABV’ control panel with tachometer with running hour recorder, key start switch, push button stop, green light for ‘power on’, red warning lights and audible alarm for: low oil pressure, high water temperature, domestic and engine alternators ‘no charge; 3m interconnection cable with multi pin plug connector.
  • Heavy duty engine feet and flexible mountings.
  • ‘Morse’ type end fittings for engine speed and transmission control.
  • Engine test certificate and operator’s manual.
  • Maintained as well as other Beta sail drives servicing, Ventura, Oxnard, Channel Islands Marina & Santa Barbara. BETA 38 Sail Drive Marine Diesel Engine Specifications
