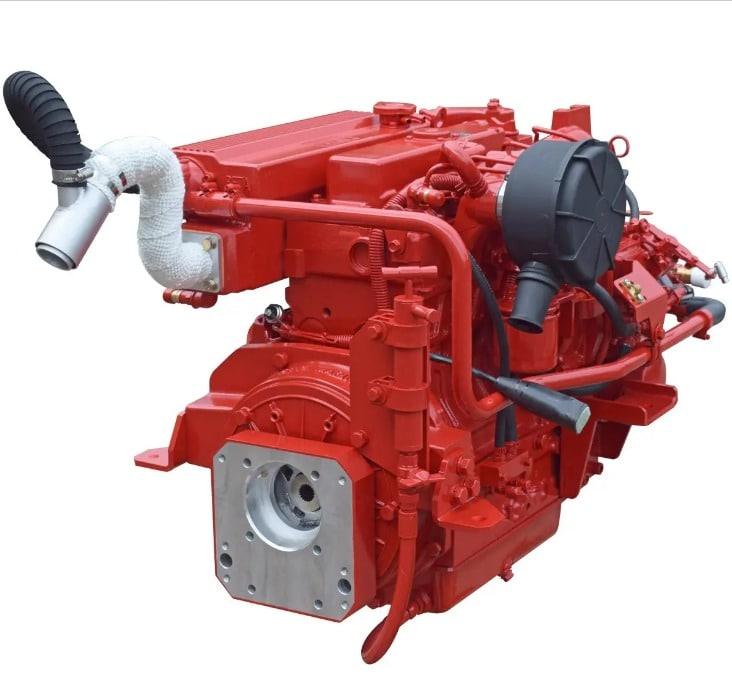

BETA 43 Sail Drive Marine Diesel Engine Specifications, serviced by trained technicians at Santa Barbara Marine Diesel Mechanic. servicing, Ventura, Oxnard, Channel Islands Harbor & Santa Barbara.
Specifications:
Power @ 2,800 rpm: 32.6 kW43 hp
Aspiration: Natural
Cylinders: 4
Displacement: 1999 cc122 in3
Engine Weight: 224 kg494 lbs
Engine & Saildrive Weight: 274 kg604 lbs
Saildrive: SeaProp 60SD (Standard)
Alternator: 70 Amp (Standard)
2 Bladed Folding Bronze Left Hand Propeller*:18″ x 14″
3 Bladed Fixed Aluminium Left Hand Propeller*:17″ x 14″
A general guidance for propeller size in inches, based upon 2 blade folding propeller LH or RH rotation and reduction ratio of 2:1. *For accurate individual advice please provide us with your vessel’s current full specifications.
STANDARD SPECIFICATIONS:
- EPA (U.S Environmental Protection Agency) Tier III – 40 CFR 1042 exhaust emission compliant.
- Mechanically governed comes with:
- Heat exchanger, header tank and water-cooled exhaust manifold.
- Fresh and sea water pump, injection bend for a wet exhaust.
- Mechanical fuel lift pump, fuel and oil filtration.
- Flywheel housing and drive plate with heavy inertia ring for super smooth running at low rpm.
- Special quiet air intake filter.
- Shallow sump.
BETA 43 Sail Drive Marine Diesel Engine Specifications
- 70 Amp, 12 Volt battery charging alternator.
- Complete with ‘C Deluxe’ control panel with tachometer with running hour recorder, key start switch, push button stop, green light for ‘power on’, red warning lights and audible alarm for: low oil pressure, high water temperature, domestic and engine alternator ‘no charge; 3m interconnection cable with multi-pin plug connector.
- Heavy duty engine feet and flexible mountings.
- ‘Morse’ type end fittings for engine speed and transmission control.
- Engine test certificate and operator’s manual.
- Beta red paint. BETA 43 Sail Drive Marine Diesel Engine Specifications.
