Importance of Clean Fuel for Diesel Engines

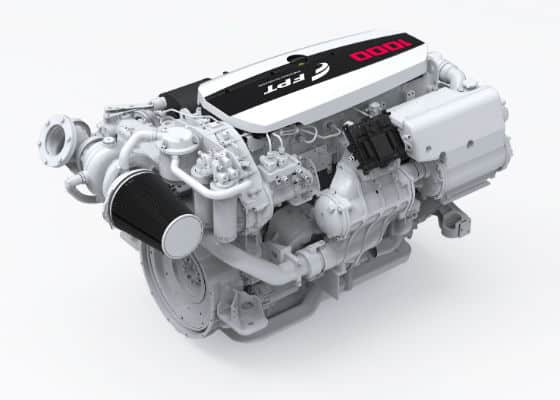

FPT Marine Engine Fuel System up-grade, the latest generation FPT Diesel Engines are engineered to maximize reliability, power output and fuel efficiency, but the critical factor in attaining these performance standards is fuel quality.
The most sophisticated diesel powerplants can fall victim to unexpected and often costly shutdowns due to substandard fuel. our skilled technicians at Santa Barbara Marine Diesel Mechanic. can solve any of your fuel system needs, servicing Channel Islands Marina, Ventura Harbor & Santa Barbara Harbor. FPT Boat Mechanic.
Racor Fuel Filter/Water separator available Up-Grades:
Racor T-Handle Vacuum Gauge for Current Turbine Models
Racor’s new stainless-steel T-handle design with vacuum gauge fits current 500, 900 and 1000 Racor Turbine Series fuel filter / water separators. provides a visual indicator to alert boaters to changes in filter performance. The color-coded dial offers cautionary and critical ranges; a red line sticker can be applied to dial to mark the point at which a filter change is required.
Racor Dash Mounted Vacuum Gauge
Same specifications as the gauge above just mounted in your dashboard and connected with 1/4 transparent hose and compression fittings.
Racor Water Alarm Detection and Filter Restriction Kit is designed to be used. With all Racor Turbine Series or Marine Turbine Series fuel filter/water separator assemblies. This kit is manufactured. using the highest quality materials and is 100% electronically tested before
leaving the factory. this detection module has a self‑diagnosis feature that illuminates the DRAIN WATER LED and sounds a buzzer at each power-up. If no water is present, the light and buzzer will shut off within 2-5 seconds.
Introducing the all new Racor 900 and 1000 fuel filter.
The all-new design adds ports, is less restrictive, and improves water separation. Larger ports decrease restriction, and two (2) inlet and two (2) outlet ports, allow installation in any configuration required to meet fuel delivery needs A Shut-off valve is integrated into each individual unit eliminating the need for upstream valves in the fuel delivery line.
A Step Above: Fleet Guard Fuel System Upgrade:
MARINE ENGINE FILTRATION:
More original equipment manufacturers are specifying advanced fuel filter/water separators for their marine diesel engines. the Seapro FH240 Filters rise to the occasion by, providing maximum efficiency and optimum performance with the use of premium NanoNet media. NanoNet traps and retains contaminants even under real world vibration and flow surge.
All-In-One Fuel Filter, Fuel/Water Separator Easiest to Maintain
- Easier, hassle-free filter change
- 5x more water holding capacity than the FH234 series.
- Low restriction check valve eliminated loss of prime when draining or changing the filter
- Sturdy, quick-acting drain for water and contaminant removal
- Water-In-Fuel (WIF) sensor kit available
- Highest Performance
- Meets OEM efficiency requirements, measured in terms of Beta ratio.
- 67% increased media area to ensure greater protection of your engine.
- Proprietary media ensures the best fuel water separation available.
- 500-hour service life recommendation
When you’re ready to up-grade your Fuel Lines and get rid of the hose clamps:

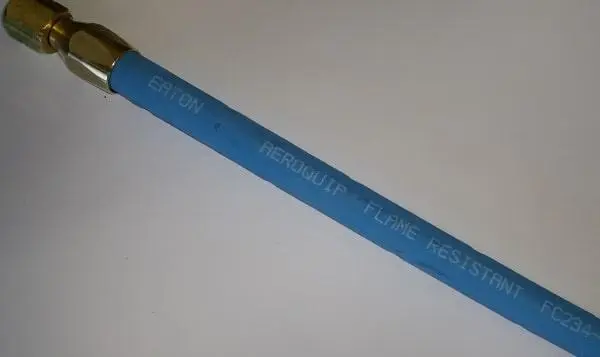

USCG Approved, fire resistant, diesel engine fuel hose. with compression fittings and hose sizes: 5/16 – 3/8 – 1/2 – 3/4
Our Skilled technicians at, Santa Barbara Marine Diesel Mechanic, can custom make any hoses, fittings, and anything else that you might need, for your Custom FPT Marine Engine Fuel System Up-Grade. servicing, Oxnard, Channel Islands Harbor, Ventura Harbor & Santa Barbara Harbor.
FPT Marine Diesel Engine Maintenance Schedule – mechanic (sbmarinemechanic.com)
