What is a Marine Engine Survey?

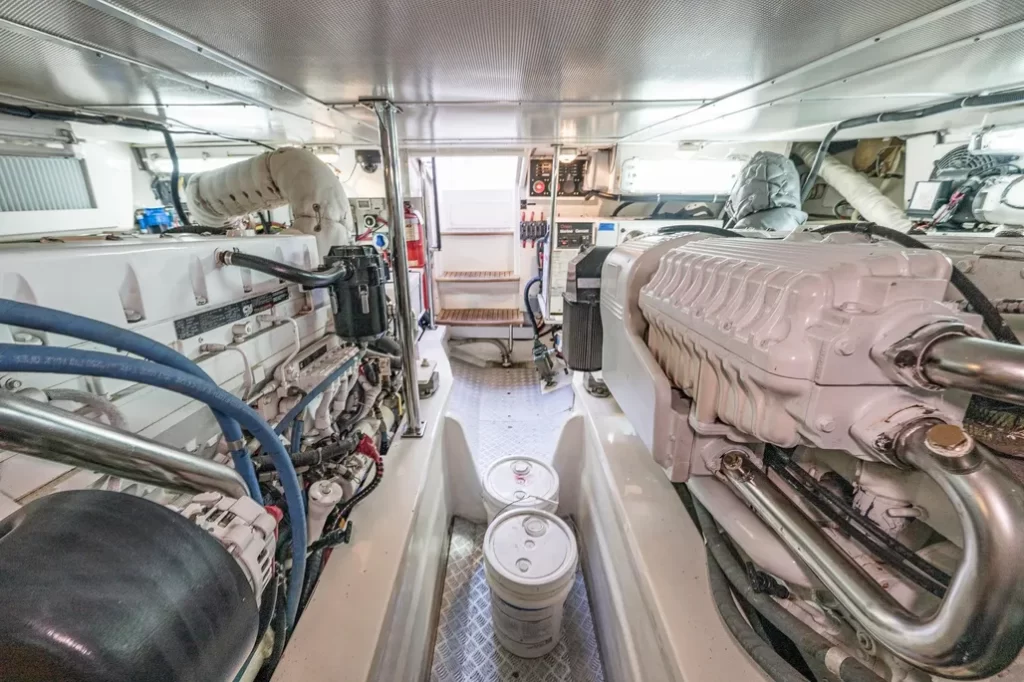

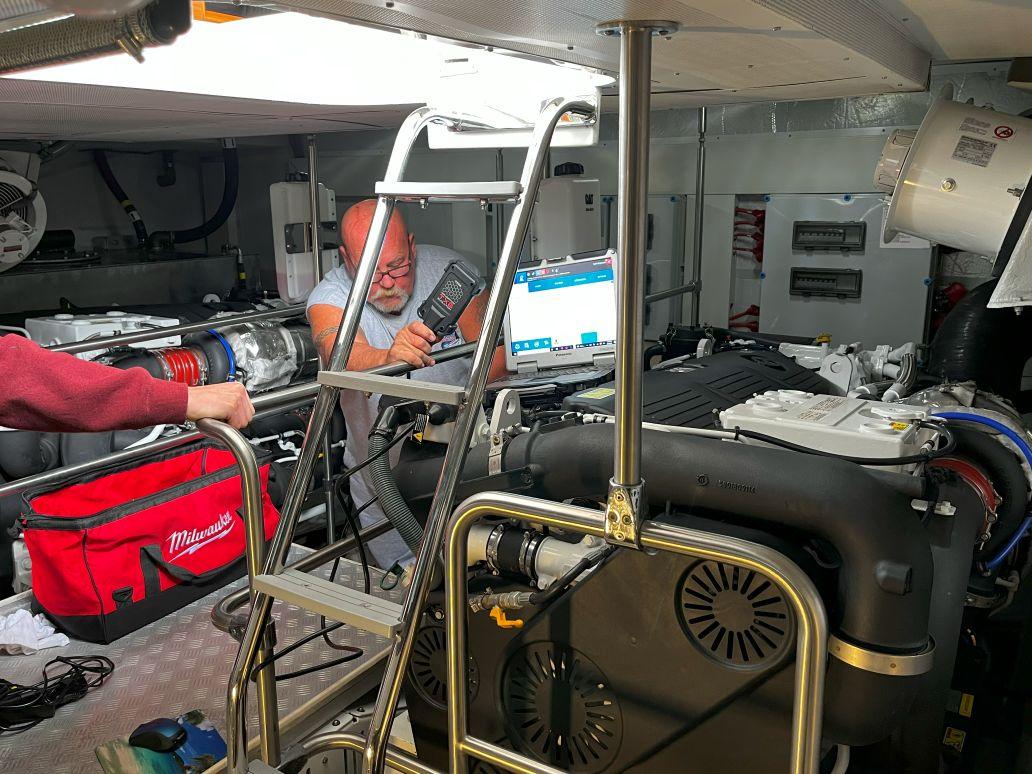

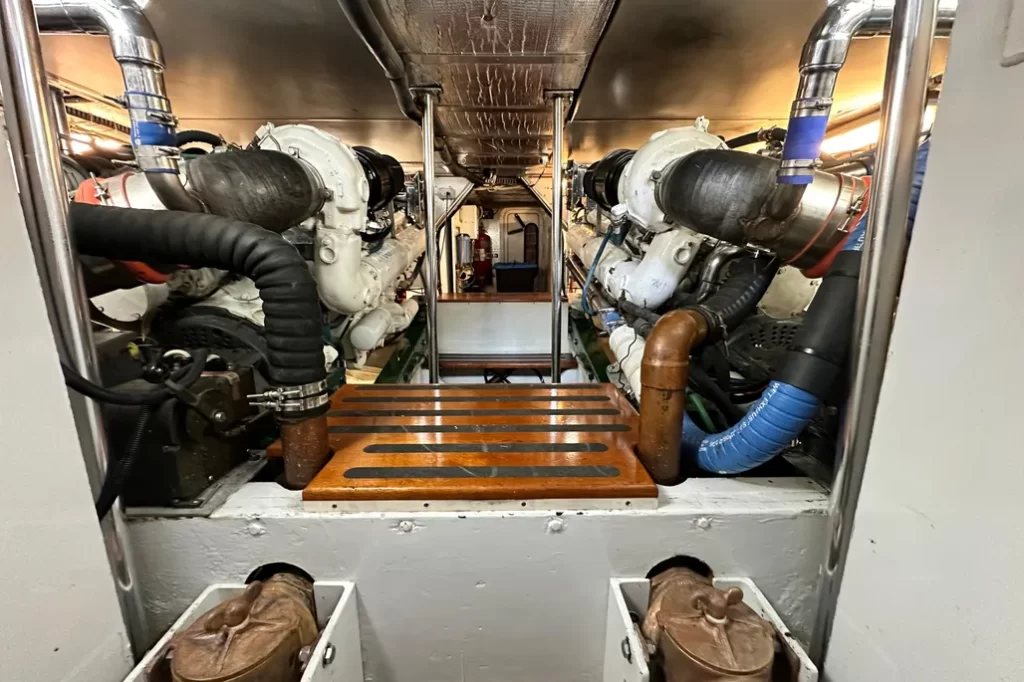

805 Marine Mechanic uses TEXA Dealer Level Marine Diagnostic Tool for ECM (Electronic control module) computerized Diagnostic engine survey software covers most inboard marine engines including. Caterpillar, Cummins, MAN, Volvo Penta, MTU, Scania, Perkins, Universal, FPT, John Deere, Ford Marine, Detroit Diesel and more.
A term used to describe an engine condition assessment (evaluation) in the marine industry. As with other types of marine survey, ‘engine surveys’ are usually performed during boat or ship sales and may be required periodically for insurance purposes.
External visual inspection of the engine coupled with extensive computerized dealer level diagnostic testing on engines with ECM (Electronic control module) hook up. supplied on most engine models 2000 and newer.
Upon request, a compression tests, borescope test, can be provided at an additional charge. Following our diagnostics, we provide you with a detailed written report of our findings.
explaining any issues we’ve discovered, and the steps needed to optimize your engine’s performance. oil analysis included in diagnostic service.
What testing is included in a Marine Engine Survey / Sea Trial.
ECM Hook up: connection of computerized diagnostic port. were applicable.
Cooling System Pressure Test: Pressure testing the cooling system of a boat is essential to identify leaks and ensure proper functioning.
Cold Engine Starting:
WOT (wide open throttle): usually between 5 – 10 minutes. nearly every marine diesel engine manufacturer warrants their engines ability to operate at full throttle for 10 minutes. M rating M1 – M5
Instrument and warning light alarm functionality:
Engine vibration: observed throughout its operating range.
Exhaust manifold temperature:
Engine Oil temperature: before and after the lube oil cooler.
Transmission Oil Temperature: before and after the transmission oil cooler.
Fuel oil temperature: before and after the fuel oil cooler.
Coolant temperature: before & after the heat exchanger.
Pressure to seawater inlet restriction or vacuum:
Engine oil pressure:
Transmission oil pressure:
Fuel oil & turbo boost pressure: ECM equipped.
Exhaust gas temperature: ECM equipped.
Shaft log temperature:
Hoses & Clamps: checked for abrasion, cracking, kinking, deformation, and fitting.
Belts and (external) chains: checked for wear, cracking, tension, and flexibility.
Electrical wires: cables, and connections examined for corrosion and mechanical wear.
Noise or vibration while shifting in & out of gear:
Inspection of engine mounts:
Oil Analysis: We draw samples of engine and crankcase oil for laboratory analysis. The results of this analysis can alert you to a variety of issues ranging from worn out bearing to leaking head gaskets.
Coolant Analysis: Transmission oil analysis:
if requested at additional cost of $75.00 per test.
Formal surveys end with a written report, which describes the engine’s general condition, along with any specific problems that the surveyor identified, and what service should be performed on the engine in the near term. Some surveys may estimate the engine’s value and/or how much the service/repairs are likely to cost.
Computerized/Visual Marine Engine Survey We Recently Performed
2020 64ft Sirena Marine Engine Survey
Conducted by : Jeff Lendall & Sons. 805 Marine Diesel Mechanic
M/V SOLEIL:
HIN/IMO: SSQ64035H021 OFFICIAL#: 1309314 LOA: 64FT YEAR: 2020
ENGINE 1:
-
Engine Make: Caterpillar Engine Model: C12.9 Engine Type: Inboard Power HP: 1000 Fuel Type: Diesel Hours: 574 Serial Number: TPJ00575 Engine Location: Port
- TRANSMISSION PORT: ZF Marine Transmission ZF500-11V
ENGINE 2:
- Engine Make: Caterpillar
- Engine Model: C12.9
- Engine Type: Inboard
- Power HP: 1000
- Fuel Type: Diesel
- Hours: 576
- Serial Number: TPJ00574
- Engine Location: Starboard
- TRANSMISSION STRB: ZF Marine Transmission ZF500-11V
GENERATOR 1:
- Generator Make: Cummins/Onan
- Generator Model: 21.5MDKDR
- Generator KW: 21.5
- Serial # G190612415
- STRB.
GENERATOR 2:
- Generator Make: Cummins/Onan
- Generator Model: 21.5MDKDR
- Generator KW: 21.5
- Serial # G190612412
- INBOARD
(ECM) Computerized Findings along with visual inspection:
FUEL FILTRATION SYSTEM: Racor Twin Turbine Series Fuel Filter/Water Seperator 10 Micron Port & Starboard side filter assembly: Appeared serviceable, No water present.
THROTTLE & SHIFTER CONTROLS: Avetics Marex ECS hydraulic shifters worked properly at flybridge and Main cabin locations
ELECTRONICALLY CONTROLED SUPERCHAGER: fully spooled 0.5 seconds giving virtually instant maximum boost. unlike the Turbo that kicks in around a 1000rpm the SUPERCHARGER works at 600rpm making the idle while putting around extremely smooth
SERIES TURBOCHARGERS WITH HEAT SHIELD: Turbo boost pressure maxed out at 55psi while performing (WOT) wide open throttle test at 2270 RPM a little bit under the max rpm of 2300 it could be adjusted with the diagnostic hook-up but i didn’t change it and everything runs smooth
GEAR-DRIVEN SEAWATER PUMP WITH BRONZE IMPELLER: Seals not leaking/no water present
PLATE-TYPE HEAT EXCHANGER: checked inlet and outlet flow temperature, within parameters
ENGINE OIL COOLER: checked inlet and outlet temperatures, all within parameters
ENGINE MOUNTED FUEL COOLER: checked inlet and outlet temperatures, all within parameters
SEAWATER PUMP OUTLET PRESSURE: sensor working properly, max …560 L/min @ 3.4 m H2O
min…411 L/min @ 23.4 m H2O
WATER-IN-FUEL DETECTION SWITCH: sensor working properly
EXHAUST TEMPATURE SENSOR: working properly, Exhaust gas flow (total)… 3,903.4 kg/hr (8,605.4 lb/hr)
COOLANT LEVEL SENSOR: working properly
DUAL AFTERCOOLERS: density of air entering engines compression chambers meets parameters

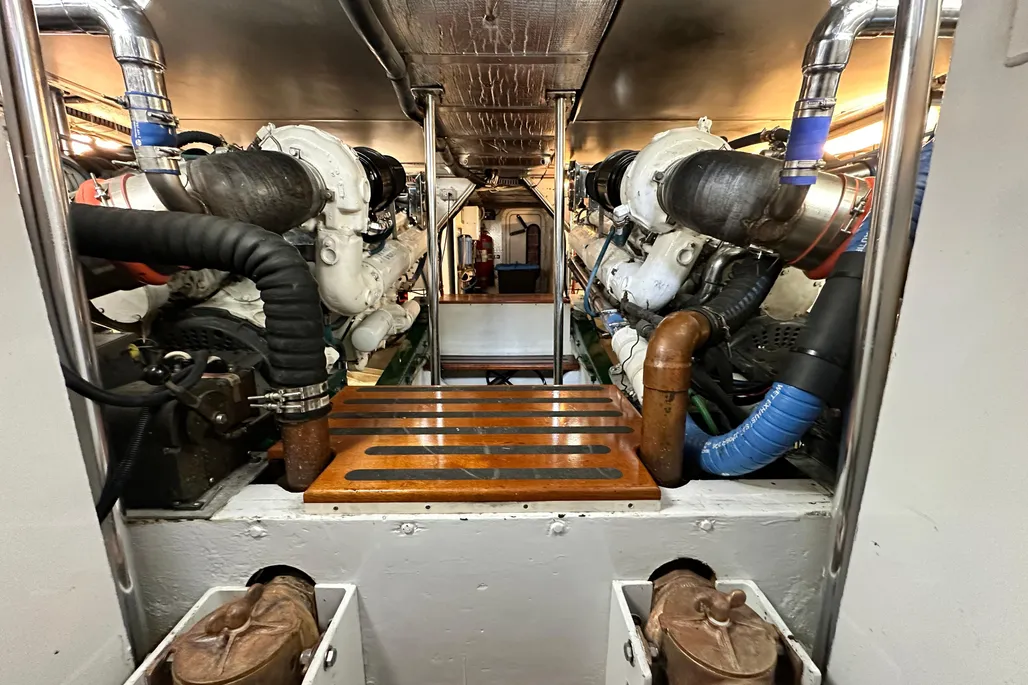

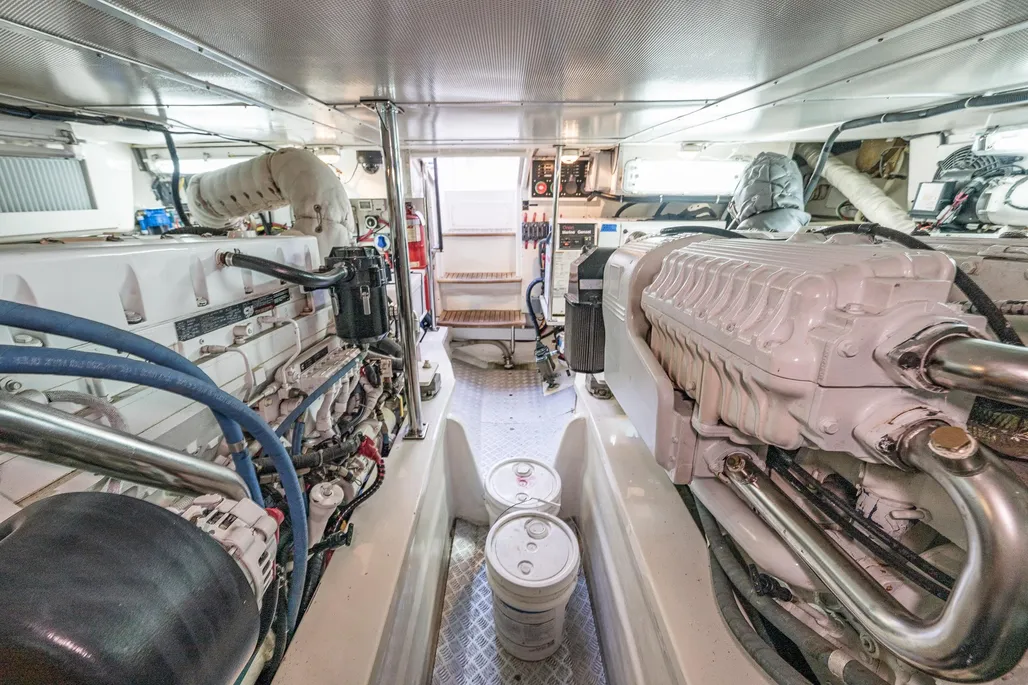

ENGINE MOUNTS AND BED: Main engine beds are heavy longitudinal stringers inboard and outboard. Engine Mounts Appeared clean & rust free like new condition
LUBRICATION: Oil Level indication is normal both port and starboard.
LUBE OIL PRESSURE: (WOT) engine 100% load 67psi
VENTILATION: Gianneschi MP/1909712 controlled supply and discharge fans. Operated satisfactory.
COOLING SYSTEM TYPE: Freshwater reservoir type cooling with Seawater cooled wet exhaust, Operated satisfactory.
SEAWATER STRAINERS: 2 2.5inch Groco bronze alloy with sight glass. Appeared serviceable. well maintained
COOLANT LEVEL: Normal levels observed. Pressurized expansion tanks on both engines to 25psi no noticeable drop in pressure. used heat sensing gun on all cooling system surfaces. operated normal.
HOSES AND CLAMPS: Double clamped where sighted. All quality 304 SS Compression style hose clamps & top-quality high temp silicon hoses. all in good condition
BELTS AND PULLEYS: Belts & Pulleys condition appeared serviceable with very minimal wear.
SEACOCKS AND STRAINERS: Seawater seacocks were ball valve type. Operated smooth & satisfactory. well, maintained
EXHAUST SYSTEM: Seawater cooled with risers and flexible coupling sections double clamped where sighted. all high-quality silicon exhaust hose, Operated satisfactory.
ENGINE ALARMS: Test of port and starboard low oil pressure alarm, water in fuel alarm and coolant overheat warning audible at helm station. Operated satisfactory.
ENGINE SHUT DOWN: Port and starboard shut down push buttons at helm station & main cabin clearly marked. Operated satisfactory.
STUFFING BOXES: Dripless Shaft Seals, Clean, greased, & no visible leaks
EMERGENCY SHUT-DOWNS. Port & Starboard Engine equipped appeared to work properly
——————————————————————————————-
SEATRIAL REPORT:
1. The engines started without excessive cranking.
2. The engine exhaust appeared normal.
3. The cooling water exhaust appeared adequate and normal.
4. The engine instruments operate within normal operating limits at idle, cruising speed and at wide open throttle.
5. The steering system operated normally. very responsive.
6. The throttles operated normally.
7. The transmissions both went in & out of gear smooth with no excessive noise, no leaks detected from any of the seals on both
8. The backdown test was satisfactory.
9. both rudder linkage operated smooth while underway, no leaks detected
10. There were no oil or coolant leaks observed. (On main engines or in exhaust water)
11. both bow & stern thrusters operated smooth, very responsive
WOT TEST: (wide open throttle) sea trial test for 3 minutes, smooth clean power, with no smoke from either engine while throttling up, extremely clean at (WOT) 2270 RPM a little under the 2300 Max RPM but nothing to be concerned about. OIL ANALYSIS: Performed sample on both Caterpillar marine engines C12.9 & Both Cummins/Onan Generators. Port Main Engine Caterpillar C12.9 Oil Analysis 6180149_PORT_MAIN_C12_9#PORT_MAIN_C12_9_ENG_MA_POR_H430-55042-0334_NAR Starboard Main Engine Caterpillar C12.9 Oil Analysis 6180149_C12_9_STBMAIN#C12_9_STBMAIN_ENG_MA_H430-55043-0130_NAR Port Generator Onan 21.5 Engine Oil Analysis 6180149_GEN_PORT_ONAN#GEN_PORT_ONAN_GEN_MA_POR_H430-55042-0318_MC Starboard Generator Onan 21.5 Engine Oil Analysis 6180149_ENG_GEN_5THGEN#ENG_GEN_5THGEN_ENG_MA_GEN_H430-55042-0410_NAR
FINDINGS:
Caterpillar C12.9 marine engines, port & starboard. ran very smooth & sounded strong, low hours, did not observe any black smoke or smoke of any kind that would lead me to believe that they had much wear. Port Generator Onan 21.5…. TRACE LEVELS OF WATER DETECTED (0.1%) MAY BE CONDENSATION. ALL OTHER ANALYSIS READINGS APPEAR NORMAL. I SUGGEST CHANGING THE OIL & FILTER. RUN IT FOR 10 HOURS AND THEN RESAMPLE THE OIL.
MARINE ENGINE SURVEY SUMMARY:
As a result of my investigation, MARINE ENGINE SURVEY, and by virtue of my experience, my opinion is OVERALL ENGINE RATING: VERY GOOD: the engine room and engines appear to be extremely well maintained. the entire space was free of oil and grease & spotless,
NOTICE:
The following statements limit the liability of the undersigned and set ethical standards associated with this report. Use of this report for any purpose constitutes acceptance of the following:
NOTE A: This report is issued without prejudice and is the property of the Requestor
as listed above. Any use or distribution by another party is prohibited and shall render this report invalid.
NOTE B: This report is issued subject to the understanding that the undersigned surveyor is not responsible for error, omission, negligence or misstatement. This report is a statement of my opinion based on the conditions as I found them. It is not a warranty express or implied. This inspection is valid this date only as conditions of vessels in a saltwater environment can deteriorate rapidly. Condition is to be regarded as good or better unless reported herein.
Owner/Surveyor Jeff Lendall
Gianneschi MP/1909712 controlled supply and discharge fans. Operated satisfactory.
Caterpillar Dual C12.9 Control Stations. Avetics Marex ECS hydraulic shifters worked properly at flybridge and Main cabin locations
(WOT) wide open throttle test everything performed within parameters
Both dripless shaft packing performed well while underway, no leaks- no water detected
All Sea Strainers both main engines and both generators extremely well maintained and clean
(WOT) wide open throttle test 25.4 knots at 2270rpm and 50gallons per hour per engine
TEXA Fuel Injector Diagram
Turbo Boost Pressure
Pricing:
Visual engine survey no computerized hook up: $500.00 per engine
Visual & ECM computerized survey: $750.00 per engine
Marine Diesel Generators: $400.00
Sea trial & Engine oil analysis included in cost.
-
Compression test
-
Engine coolant analysis
-
Transmission oil analysis
-
Borescope testing
-
Can be provided at an additional charge.
oil analysis included in diagnostic service. Formal surveys end with a written report, which describes the engine’s general condition, along with any specific problems that the surveyor identified, and what service should be performed on the engine in the near term.
Some surveys may estimate the engine’s value and/or how much the service/repairs are likely to cost. Surveys vary in thoroughness/detail, according to how much the person commissioning the survey (by hiring the surveyor) wants to spend on it.
but no survey will provide absolute guarantees, and most reports will contain a disclaimer of liability, describing the limitations of the assessment.
